Manufacturer spotlight
Amphenol / Pyle
Amphenol Pyle delivers heavy-duty interconnect systems for harsh environments, ranging from Star-Line and Rail Transit connectors to cord grips and indicator lights. Eastern Connector supports product selection for rail, transit, and industrial applications.
Built for Heavy Duty
Connectors for Demanding Environments
Amphenol Pyle interconnect systems handle vibration, weather exposure, and frequent coupling cycles. Eastern Connector can help match mating components and support retrofit needs for rail and transit fleets.
Rail & Transit Focused Solutions
Core product lines like Star-Line, Triplock, Neplock, and Rail Transit connectors are trusted across rail and transit fleets for their durability and serviceability.
View categoriesProduct lines
Amphenol Pyle Connector Families
From multipin control power to heavy-duty single pole options, Amphenol Pyle provides a full range of connector systems tailored to rail and industrial applications.
Star-Line Series
Star-Line Series “ZP/ZR” connectors are heavy duty environmentally sealed plugs and receptacles and have been successfully used in all types of Industrial and Aerospace applications
- Reversable inserts
- Design and materials withstand the most challenging operating conditions. Series has an IP 67 rating.
- Solder, crimp, and pressure terminals available
- Easily accessibly wire terminals and wire space

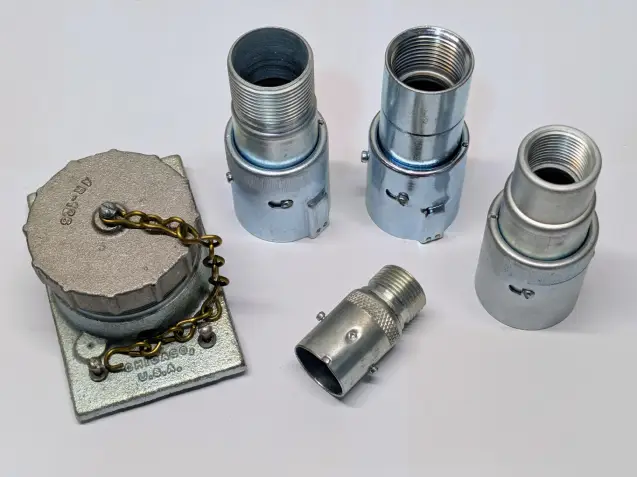

Triplock & Neplock
Power and control connectors with 14-20 amp, 460 VAC inserts and secure coupling.
- Common inserts featuring 12 contact configurations
- Triplock uses a spring-loaded locking mechanism for standard environments
- Neplock is environmentally sealed with heavy-duty threaded coupling nuts for wet environments

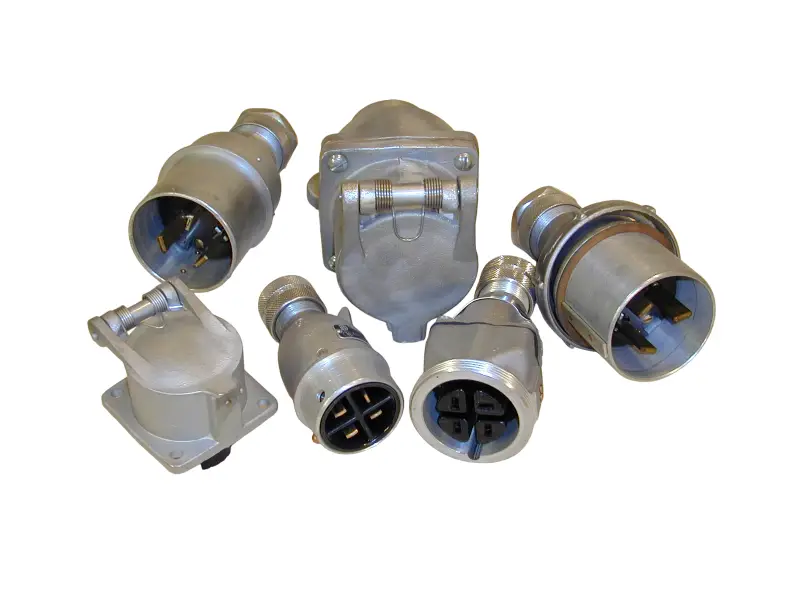

Quelarc & Ralco Lines
Circuit-breaking power connectors for portable and detachable equipment.
- 30, 60, and 100 ampere, 600 VAC
- Long insulating paths provide uninterrupted service in damp or current-carrying dust
- Compound circuit breaking arc chambers ensure complete snuffing and cooling while the plug is still engaged with the receptacle housing
- Partitions between contacts provide anti-arcing from pole to pole and from pole to ground

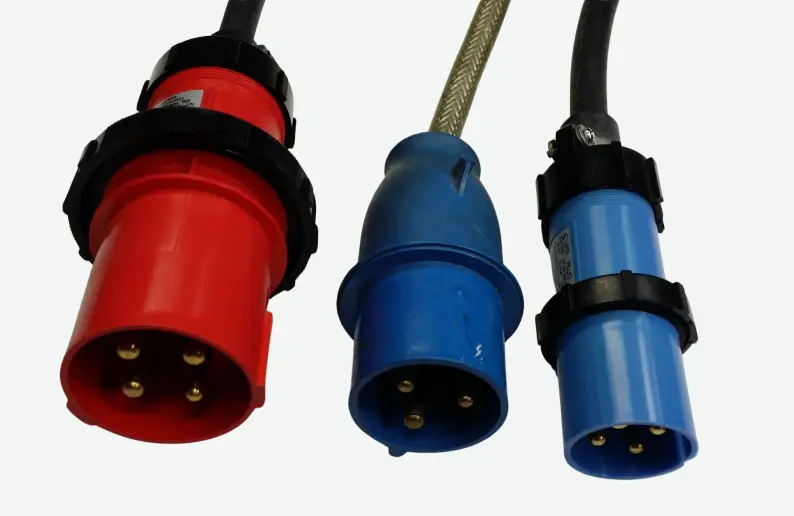

HL Series
HL Series intermodal power connectors from Kitazawa Electric Works (KEW,) plus cord grips for strain relief, complying with internationally recognized ISO and CEE standards.
- Interlocked receptacles in single, two, and four gang units.
- 60 amps @ 250VAC, 60 amps @ 480 VAC, and 32 amps @ 380/440 VAC
- Weatherproof-Rated IP 56, NEMA 3, 4, 4x, and 12
Downloads
Rail Transit & Train-Line
General duty connectors and jumpers for transit and standby applications.
- 400 amp, 600 volt, non-current rupture head end power connectors.
- Replaceable contacts in an all-molded elastomeric rubber body, allowing field repairs.
- Socket contacts feature a unique pressure member design, providing uniform pressure for low mating and unmating forces, low millivolt drop, consistently low temperature rise and shock resistance.
- Pyle's unique elliptical seal permits the escape of entraped air while mating, and conversely breaks the vacuum created as the plug is unmated.
Need Help with Amphenol Pyle Part Numbers?
Eastern Connector can help cross references, locate stock, and build assemblies around Amphenol Pyle connectors.
